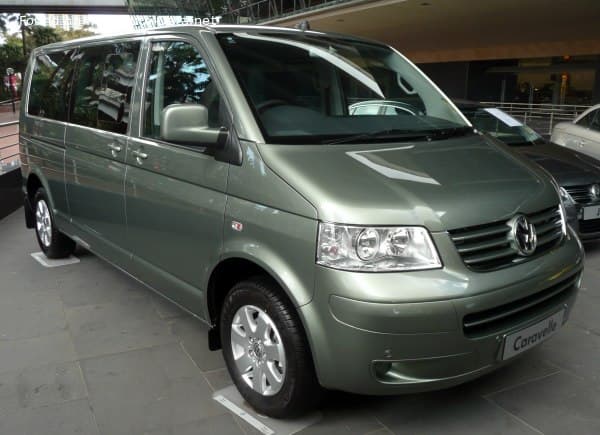

2003 Volkswagen Caravelle (T5) Long 2.5 TDI (130 Hp) 4MOTION
Drivers looking for a dependable Van can explore the 2003 Volkswagen Caravelle (T5) Long 2.5 TDI (130 Hp) 4MOTION from Volkswagen, Caravelle T5 2003. With its Diesel engine, it promises efficiency and long-term reliability. Full specifications allow buyers to evaluate how the car performs in different conditions, helping them select the right model.
General Information
| Body Type | Van |
| Seats | 2025-09-05 00:00:00 |
| Doors | 2025-05-04 00:00:00 |
| Length | 5290 mm |
| Width | 1904 mm |
| Height | 1959 mm |
| Wheelbase | 3400 mm |
| Front Track | --- |
| Rear Track | --- |
| Kerb Weight | 2080-2320 kg |
| Max Weight | --- |
| Max Load | --- |
| Trunk (Boot) Space - Minimum | --- |
| Trunk (Boot) Space - Maximum | --- |
| Fuel Tank Capacity | --- |
Engine Specifications
| Powertrain Architecture | Internal Combustion engine |
| Fuel Type | Diesel |
| Engine displacement | 2460 cm |
| Power | 130 Hp @ 3500 rpm. |
| Power per litre | 52.8 Hp/l |
| Torque | 340 Nm @ 2000-2300 rpm. |
| Engine layout | Front, Transverse |
| Engine Model/Code | EA153 / AXD |
| Number of cylinders | 5 |
| Engine configuration | Inline |
| Cylinder Bore | 81 mm |
| Piston Stroke | 95.5 mm |
| Number of valves per cylinder | 2 |
| Fuel injection system | Pump-nozzle (Unit Injector) |
| Engine aspiration | Turbocharger, Intercooler |
| Engine oil capacity | 7.4 l |
| Coolant | 7.1 l |
Performance
| Acceleration 0 - 100 km/h | 16.3 sec |
| Acceleration 0 - 62 mph | 16.3 sec |
| Acceleration 0 - 60 mph (Calculated by Auto-Data.net) | 15.5 sec |
| Maximum speed | 165 km/h_x000D_ |
| Weight-to-power ratio | 16 kg/Hp, 62.5 Hp/tonne |
| Weight-to-torque ratio | 6.1 kg/Nm, 163.5 Nm/tonne |
Fuel Economy and Emissions
| Fuel consumption (economy) - urban | 12.2-12.4 l/100 km |
| Fuel consumption (economy) - extra urban | 7.4-7.6 l/100 km |
| Fuel consumption (economy) - combined | 9.2-9.4 l/100 km |
| CO | 248-254 g/km CO |
| Emission standard | Euro 3 |
Drivetrain and Transmission
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary. |
| Drive wheel | All wheel drive (4x4) |
| Number of gears and type of gearbox | 6 gears, manual transmission |
| Minimum turning circle (turning diameter) | 13.2 m |
Suspension and Brakes
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Independent coil spring, Transverse stabilizer, Trailing arm |
| Front brakes | Ventilated discs, 308x29.5 mm |
| Rear brakes | Ventilated discs, 294x22 mm |
Steering and Tires
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 215/65 R16 |
| Wheel rims size | 6.5J x 16 |
Frequently Asked Questions
What are the key specifications of 2003 Volkswagen Caravelle (T5) Long 2.5 TDI (130 Hp) 4MOTION Volkswagen 2003 in Pakistan?
In Pakistan, the 2003 Volkswagen Caravelle (T5) Long 2.5 TDI (130 Hp) 4MOTION 2003 by Volkswagen comes with a Van, Diesel engine, and -gear 6 gears, manual transmission.
Is 2003 Volkswagen Caravelle (T5) Long 2.5 TDI (130 Hp) 4MOTION 2003 Volkswagen available in Pakistan with automatic gearbox?
Yes, the 2003 Volkswagen Caravelle (T5) Long 2.5 TDI (130 Hp) 4MOTION 2003 is offered in Pakistan with a 6 gears, manual transmission, ensuring smooth driving in urban traffic.
What is the most popular body type of 2003 Volkswagen Caravelle (T5) Long 2.5 TDI (130 Hp) 4MOTION 2003 in Pakistan?
The most preferred version in Pakistan is the Van, combining comfort with Diesel efficiency.
